Falcon 5012

Features	GPU composability GPU hotplug GPU peer to peer (GPU P2P) PCIe port configuration to host/device ports Power control of a single PCIe slot GPU health information Performance and error monitoring of host and device ports Flexible switch cascade topology Flexible switch fabric topology Configurable host virtual tree Host view of assigned GPU GPU view of assigned host Temperature threshold setup Device overheated protection Firmware secure boot Link capability and status of devices User authentication management 256bit encryption of sensitive data Sha128 encryption ELK central log server integration
Management Interface	Redfish®, RESTful API, GUI
System Management	H3 management center Real-time GPU cluster topology Dashboard for GPU utilization, performance and other information Predictive health monitoring Role-based authentication and access control

Features

Management Interface

Redfish®, RESTful API, GUI

System Management

Model Name	Falcon G5016
BMC	AST 2600, fully IPMI V2.0 compliant AST 2500
mCPU	Intel ATOM X86 CPU
PCIe Switch	Broadcom PEX 89144 PCIe 5.0 switch
Device	GPU, FPGA, network card, and other standard PCIe device (add-in card) Dual-slot width and 10.5” length Support up to 700W GPU

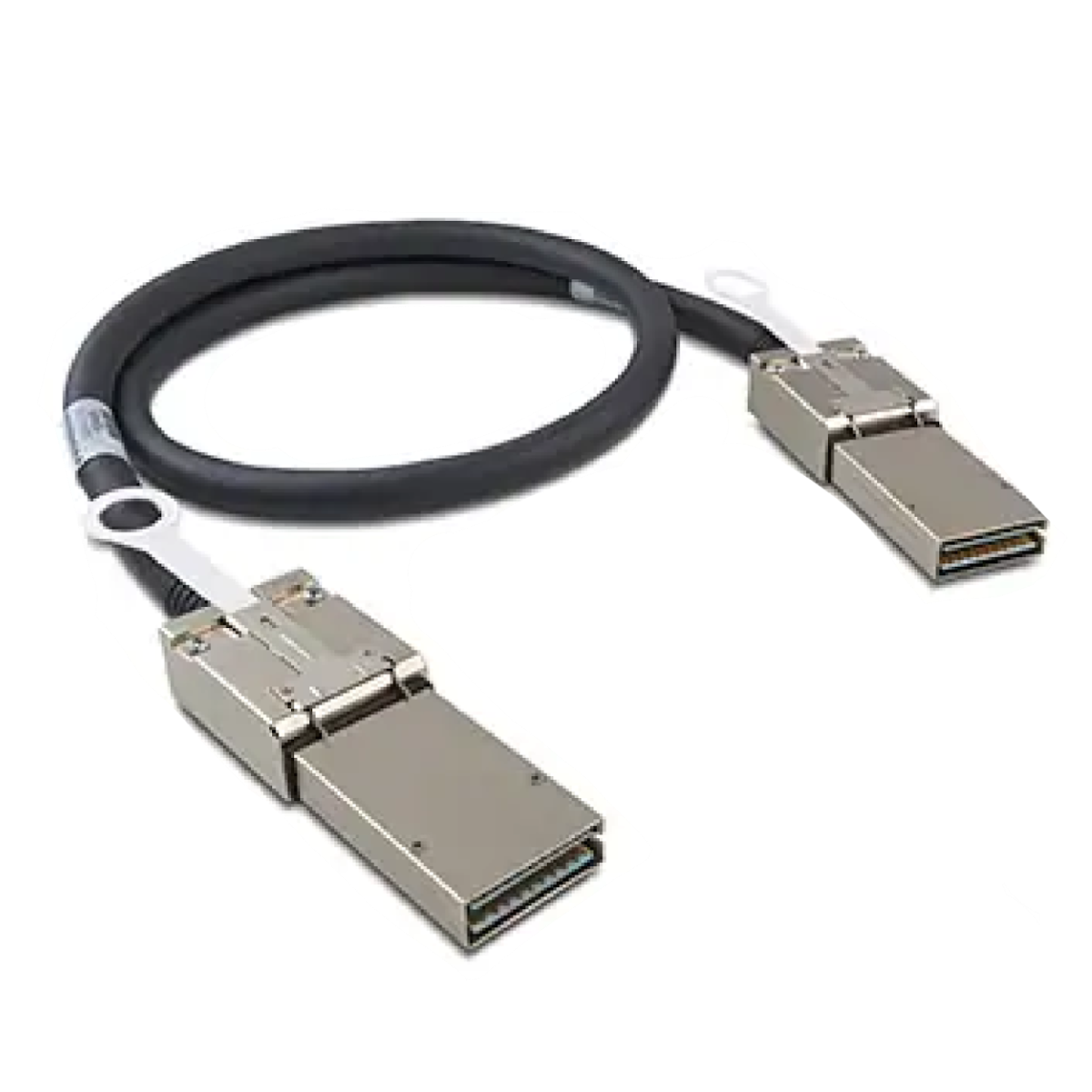

Host Connection Cable	1m CDFP cable
Operating Environment	Operating temperature: 10 degrees Celsius ~ 35 degrees Celsius (50 degrees Fahrenheit ~ 95 degrees Fahrenheit)
Ethernet Ports	RJ45 of mCPU for memory management RJ45 of BMC for chassis management

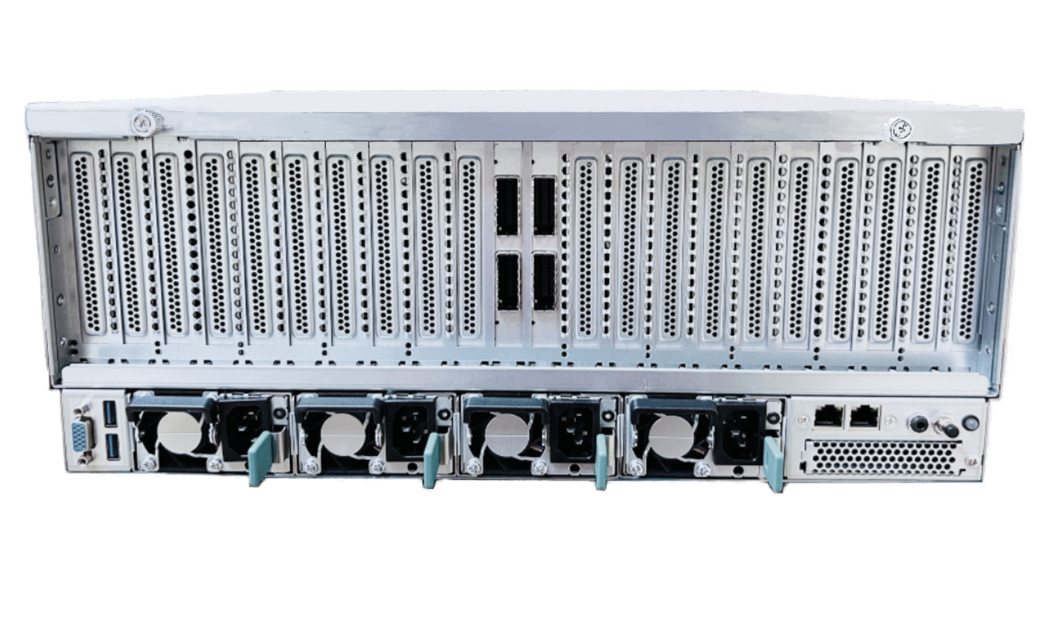

Power	Four (4) pieces 2700W or 3200W (2+2 or 3+1 redundant), back removable, hot-swap

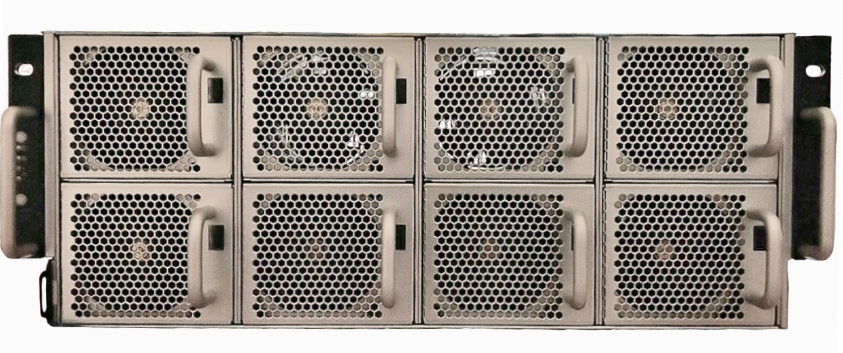

Fan	8 80x80mm dual rotor fans Hot-swap

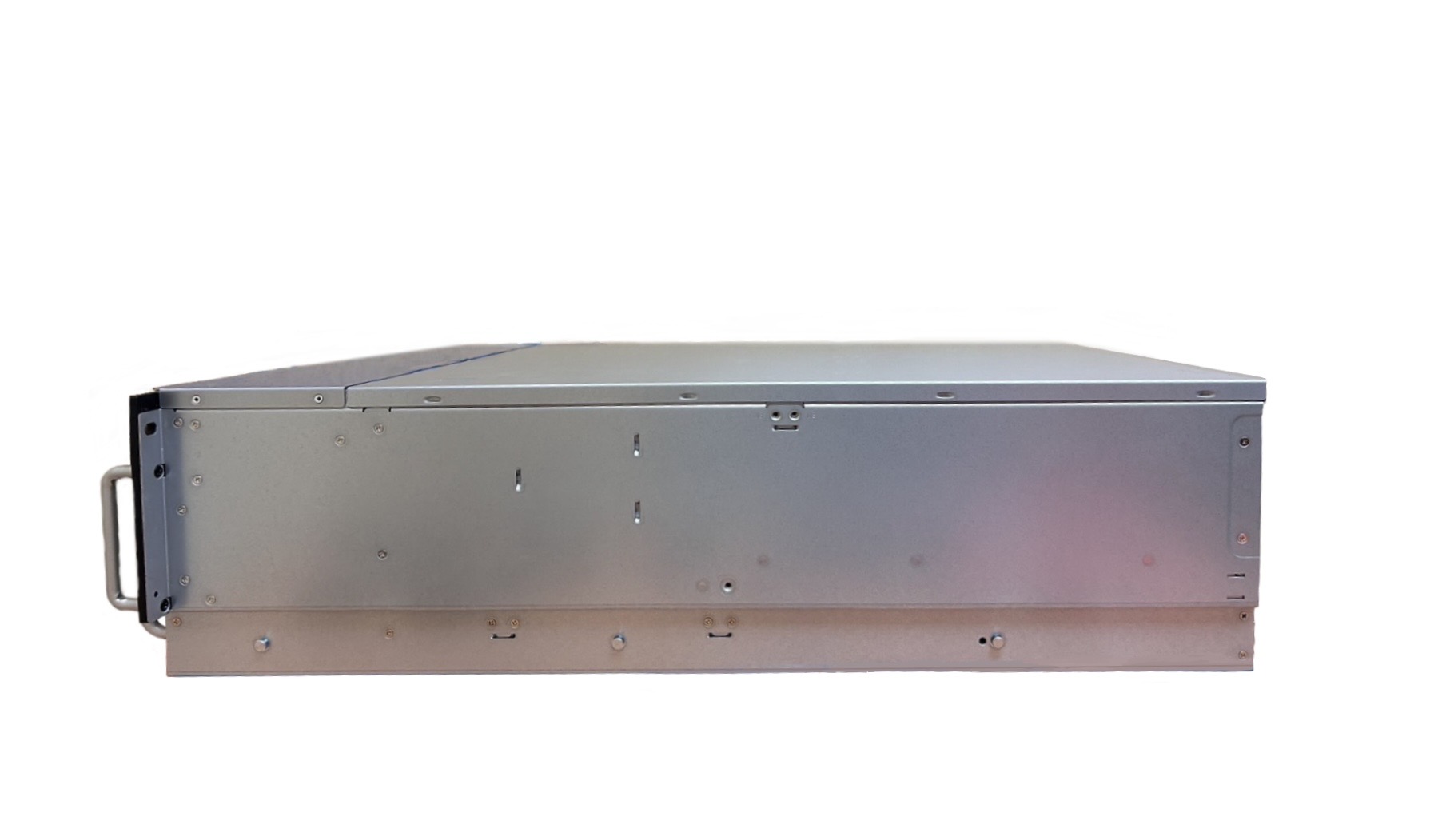

Dimension	4U; 175(H) X 448(W) X 650 (D)mm 4U; 176(H) X 448(W) X 650 (D)mm

Model Name

Falcon G5016

BMC

AST 2600, fully IPMI V2.0 compliant
AST 2500

mCPU

Intel ATOM X86 CPU

PCIe Switch

Broadcom PEX 89144 PCIe 5.0 switch

Device

GPU, FPGA, network card, and other standard PCIe device (add-in card)
Dual-slot width and 10.5” length
Support up to 700W GPU

Host Connection Cable

1m CDFP cable

Operating Environment

Operating temperature: 10 degrees Celsius ~ 35 degrees Celsius (50 degrees Fahrenheit ~ 95 degrees Fahrenheit)

Ethernet Ports

Power

Four (4) pieces 2700W or 3200W (2+2 or 3+1 redundant), back removable, hot-swap

Fan

Dimension
