There are two configuration modes of Falcon 4210, the standard mode and the advanced mode. The Standard mode supports single host connection to each drawer (2 hosts in total), and the low-profile slot will be a device slot. The Advanced mode supports multiple host connections to each drawer, the low-profile slots can be configured into host ports for extra host machines. Also, the GPUs can be re-allocated dynamically among the hosts under Advanced mode.

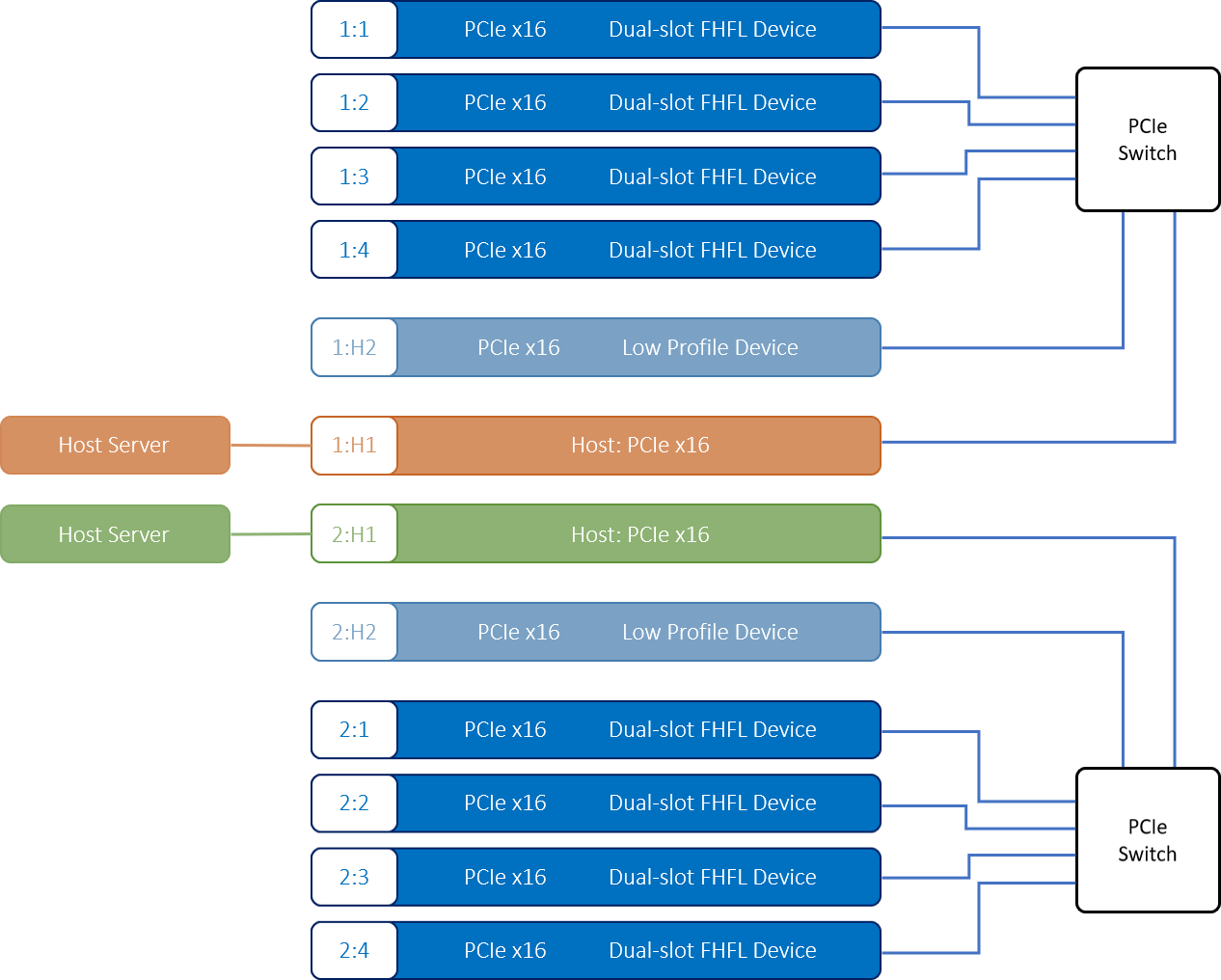

A single host can access the 4 GPUs and a low-profile device in the same drawer (under the same PCIe switch).

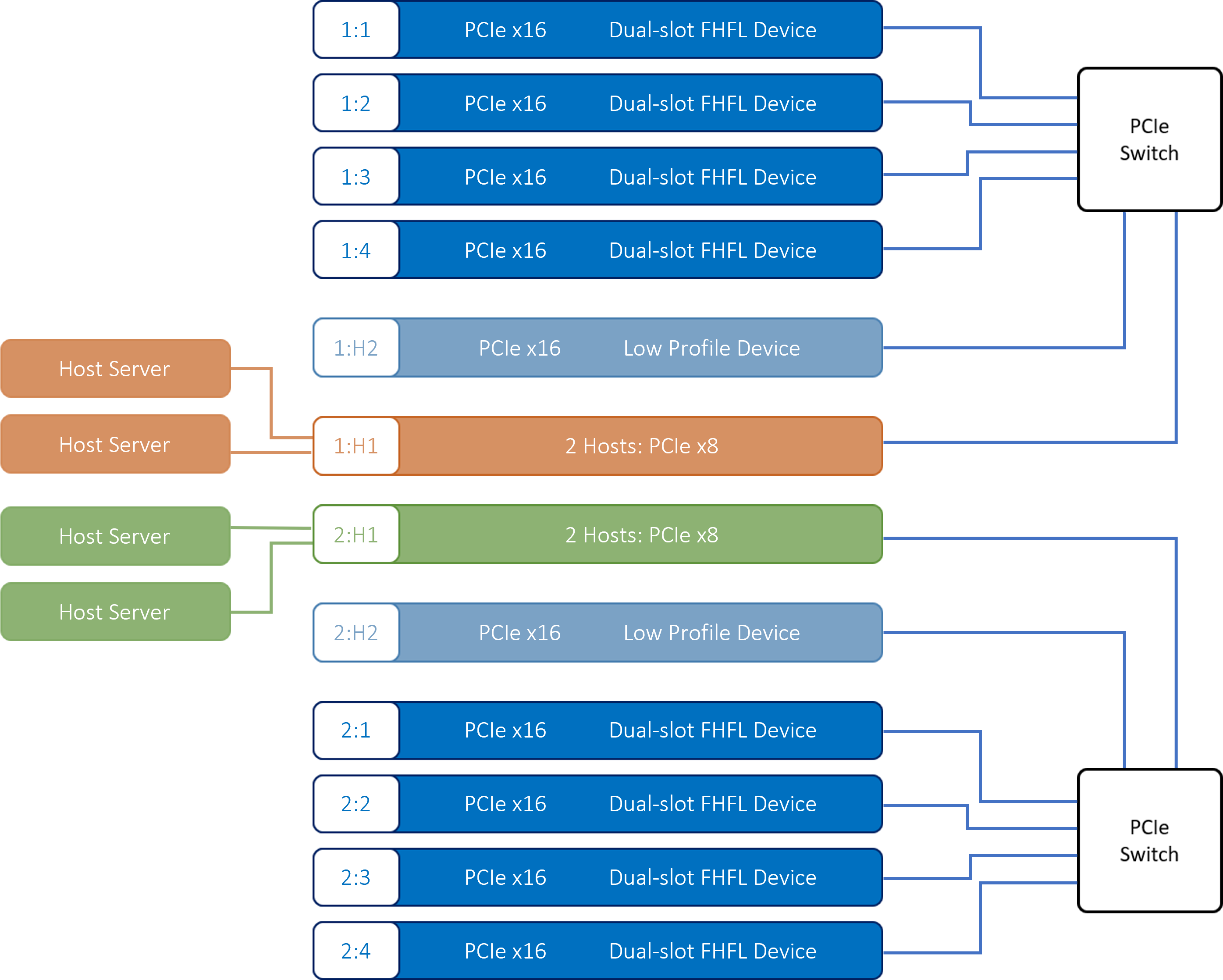

Each host port is configured into two x8 host ports. Each host can access 4 GPUs and one PCIe device.(under the same PCIe switch)

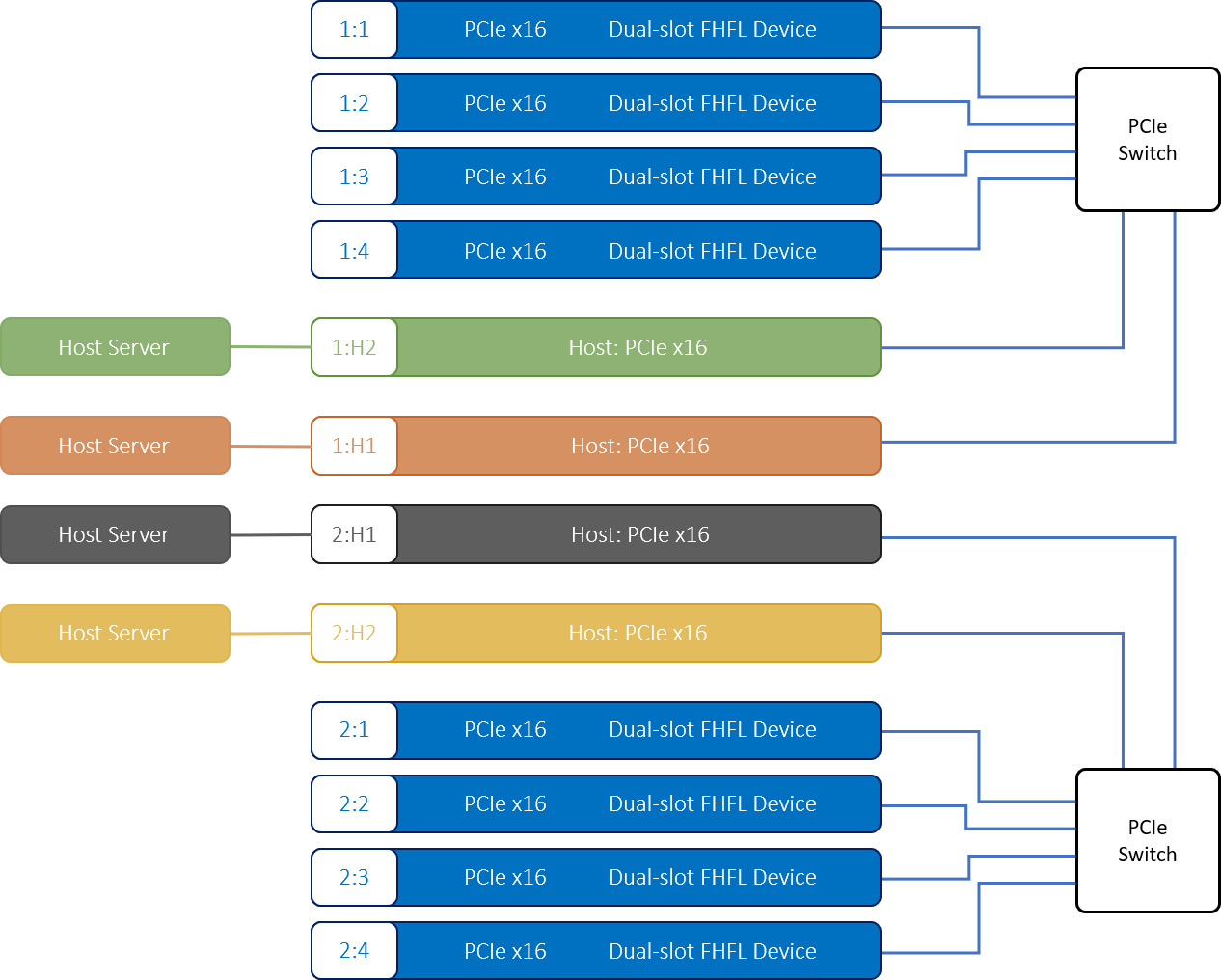

The low-profile slots are configured into host ports for additional host connections. The four GPUs can be re-allocated dynamically among the connected hosts under the same PCIe switch (the two drawers works independently to each other).

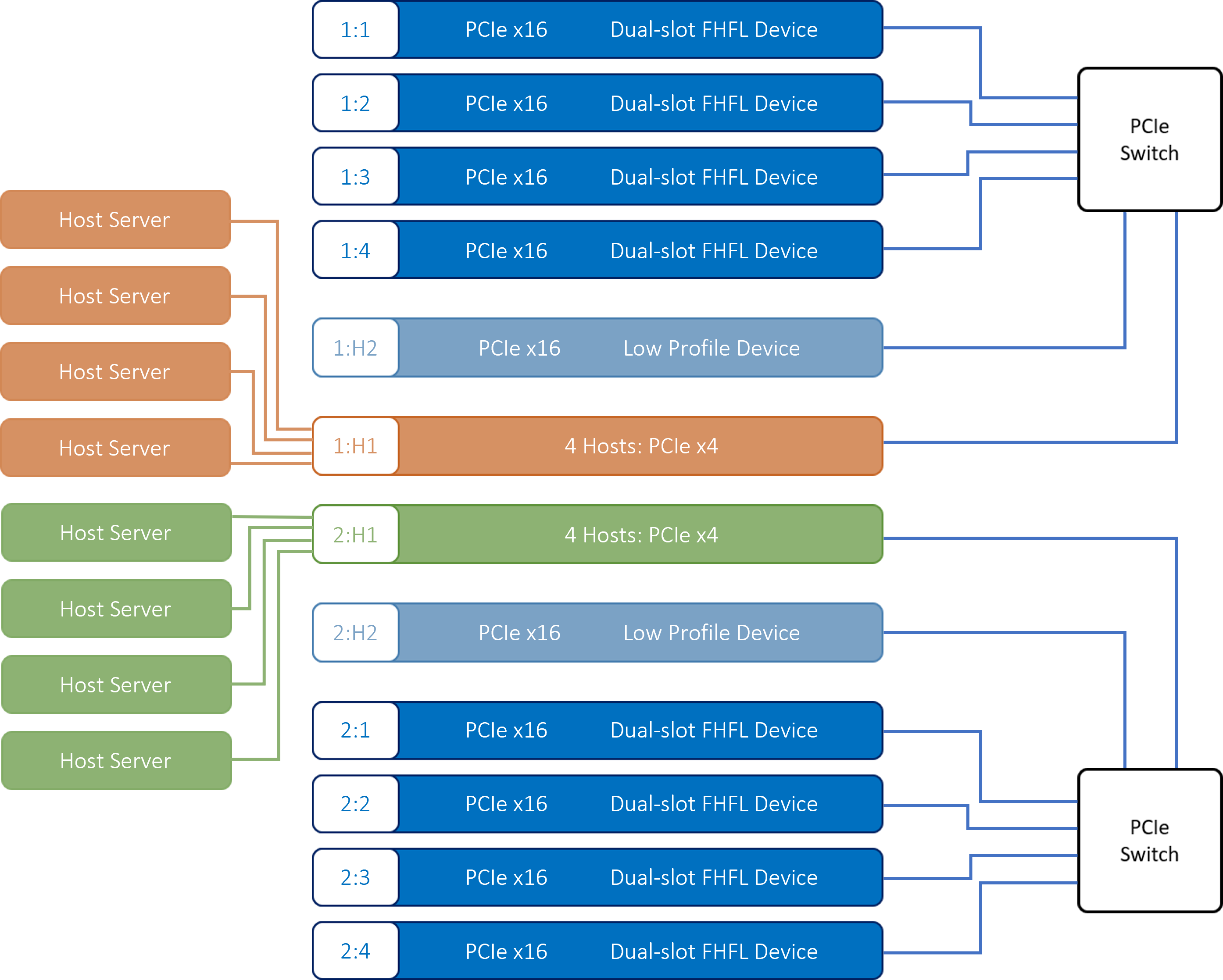

Each host port are configured into four x4 host ports. Each host could access four GPUs and one PCIe device. (under the same PCIe switch)

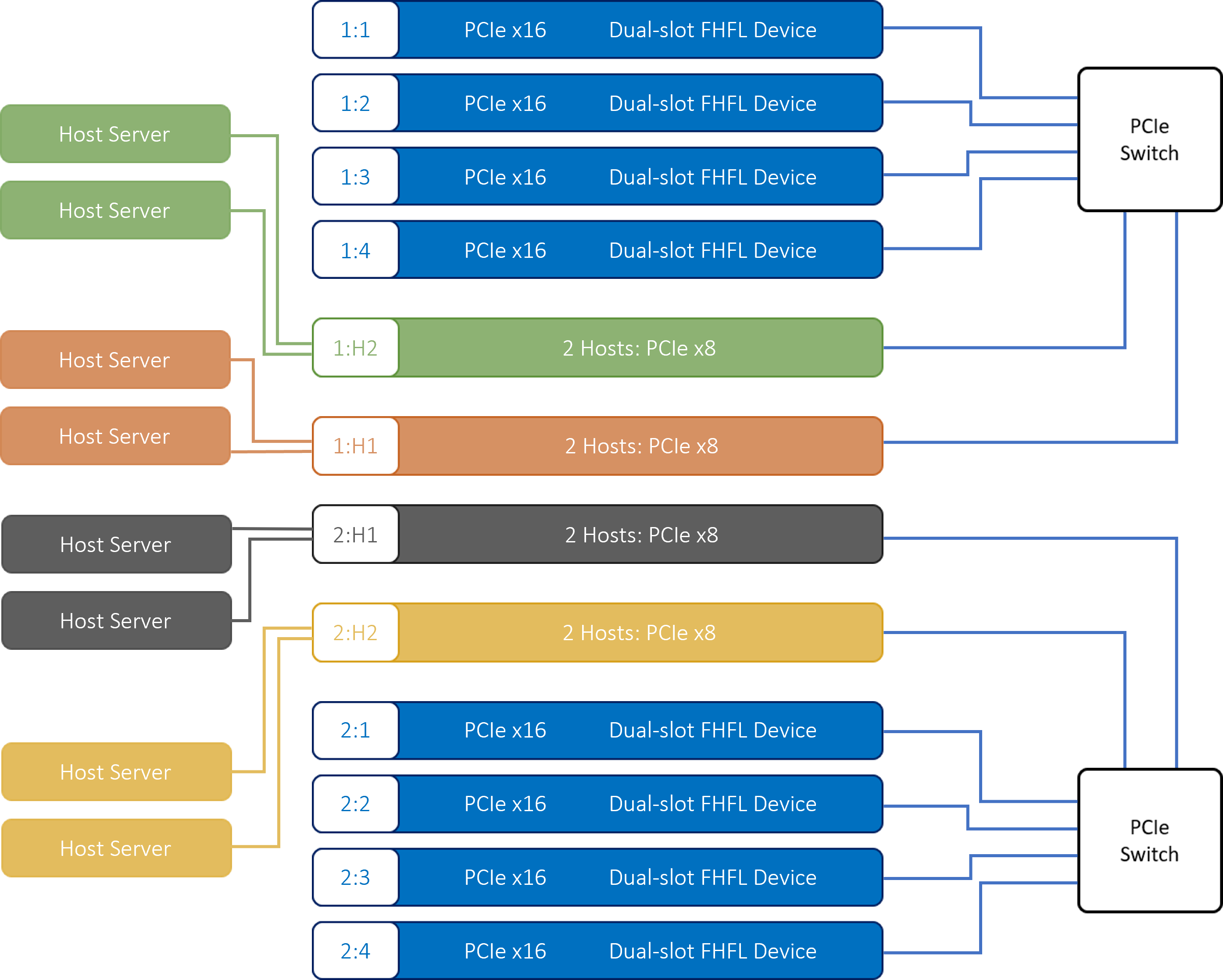

The low-profile slots are all configured into host ports. Each host port is configured into two x8 host ports. And each host could access four GPUs.(under the same PCIe switch)

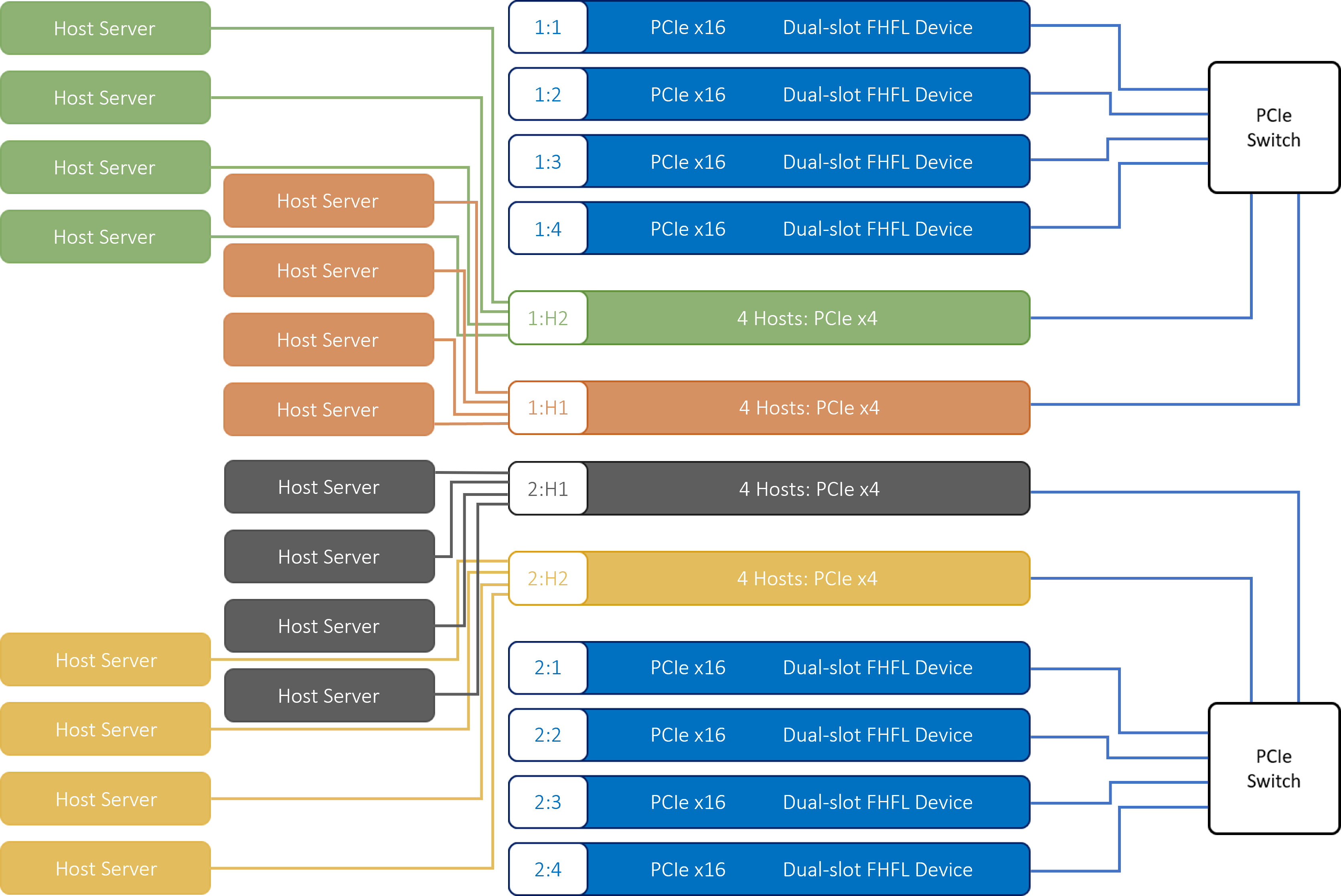

The low-profile slots are all configured into host port. Each host port is configured into four x4 host ports. And each host could access four GPUs.(under the same PCIe switch)
