Falcon 4109 provides instant benefits by aggregating the traffic of multiple PCIe 3.0 devices and connecting to the server at full PCIe 4.0 speeds. It is also ready to extract full performance of any PCIe 4.0 device.
Up to 8 hosts can share 8-9 devices on-demand. With Falcon 4109 you can save up to a day in setup time alone. You can remove the resource from one host and easily add it to another host. The resources are re-arranged at the right place and at the right time. IT administrators would find that to be easy and intelligent. This cohesive hardware and software solution lets you spend more time to focus on insights instead of scraping together components.
H3 provides a control center for IT administrators to quickly deploy resources and monitor system health and usage at a glance. Starting from the dashboard, IT administrators could get real-time performance and usage updates. Within a few clicks, the resource could be transferred from one idle server to a busy server. The one-pane view helps you get your much-needed information quickly and precisely. The simplified report delivers detailed and easy diagrams and tables for your management to track down the source of performance issues and preempt future service disruptions.
Falcon 4109 integrates up to 9 NVMe, GPU, or FPGAs and allows accelerators and high-speed storages P2P communication via PCIe 4.0 interface to deliver maximum throughput for inference workloads. Falcon 4109 also supports DMA, the data moves directly between the NVMe and accelerators to eliminates unnecessary memory copies. This significantly lowers CPU overhead and latency and improves overall performance for any AI inference applications.
| Features |
|
|---|---|
| Management Interface | Redfish®, RESTful API, GUI |
| Supported Browsers | Google Chrome, Microsoft Edge, Mozilla Firefox |
| System Management |
|
| Model Name | Falcon 4109 |
|---|---|
| BMC/mCPU | Aspeed AST2500 |
| PCIe Switch | Broadcom PEX 88096 PCIe 4.0 switch |
| PCIe Device Slots |
Eight (8) PCIe 4.0 x8 single-width FHFL One (1) PCIe 4.0 x16 double-width FHFL - 314 mm (L) x 139 mm (H) x 14.47 mm (W) |
| Host Interface - Standard mode |
|
| Host Interface - Advanced mode |
|
| LCM |
|
| Power |
|
| Fan |
|
| LAN |
|
| Environmental Spec. |
|
| Agency Compliance |
Agency Certifications : EN 55032, class B EN 55035 EN 61000-3-2 EN 61000-3-3 FCC Part15B, class B FCC ICES-003 Class B VCCI-CISPR 32 RoHS Directive 2011/65/EU |
| Accelerator |
|
|---|---|
| Storage |
|
| Network Adapter | NVIDIA Mellanox ConnectX®-4, ConnectX®-5, ConnectX®-6 |
Falcon 4109 comes with single PCIe switch inside, equipped with 8 PCIe 4.0 x8 slots and. There is an extra double-width FHFL slot could be configured as either device ports or host ports
There are two configuration modes of Falcon 4109 including standard mode and advanced mode. Configuration is unchangeable under standard mode, but changeable with the extra double width slots under advanced mode as each low-profile slot could be configured as one x16 port, two x8 ports, four x4 ports or combined.
The following are some common configurations of Falcon 4109 to start with.

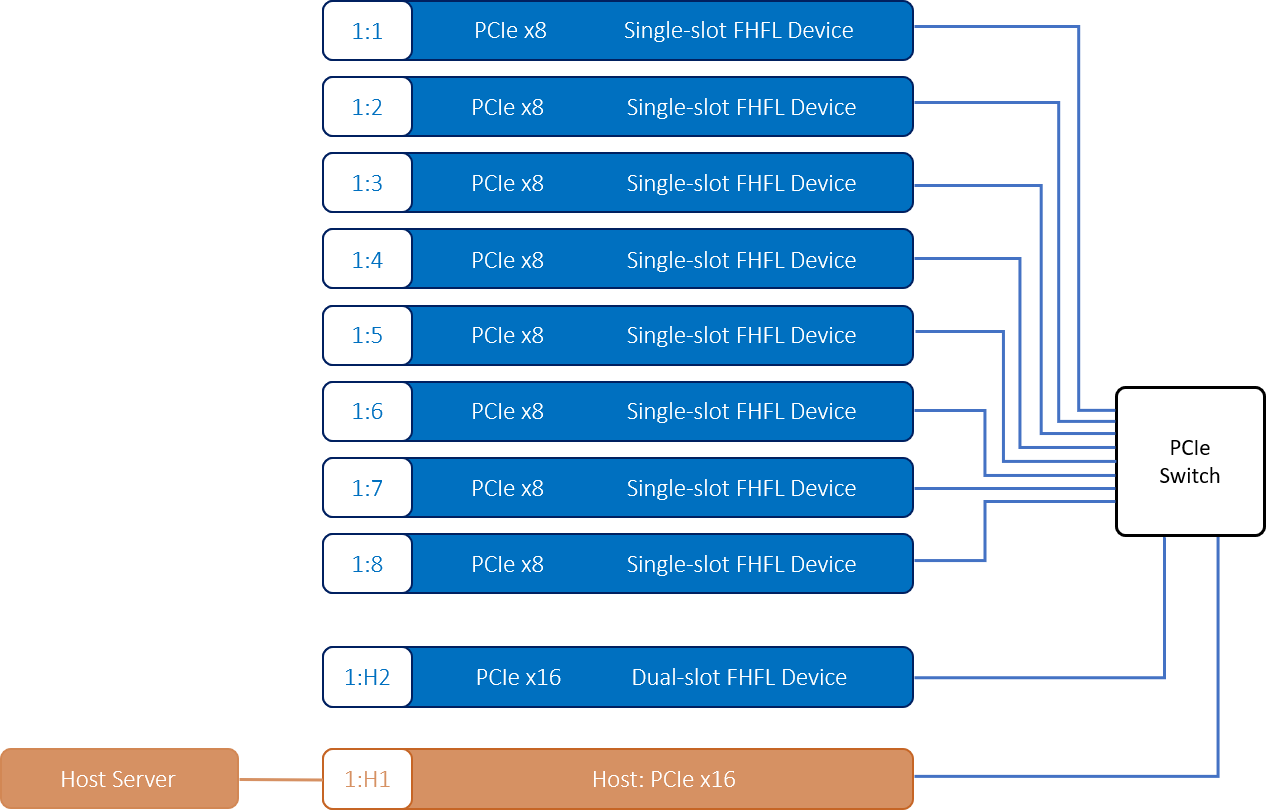

One host could use all PCIe devices in the chassis with up to 9 devices.

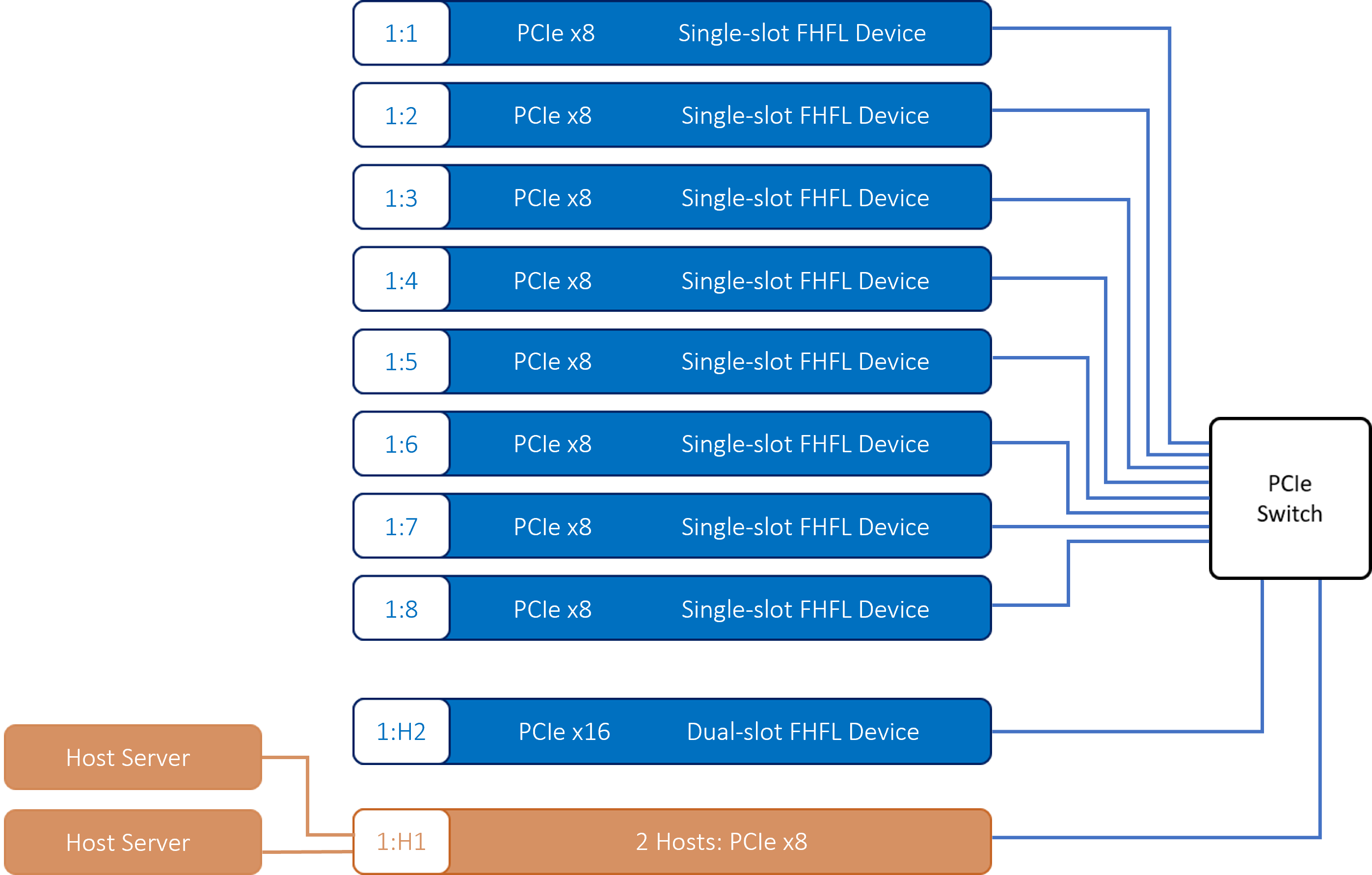

The host port is configured into two x8 host ports. The hosts could access up to 9 devices.

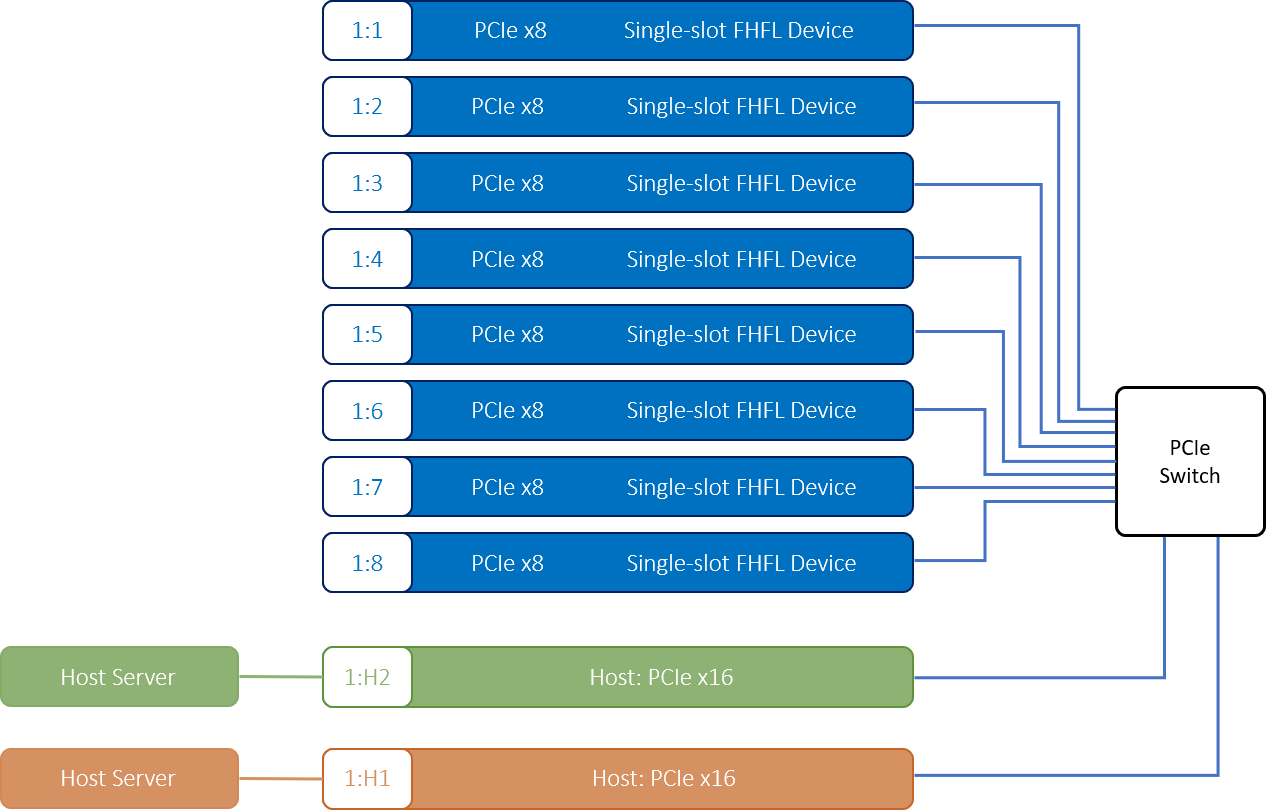

The extra double-width slot is configured as a x16 host port. The hosts could access 8 devices.

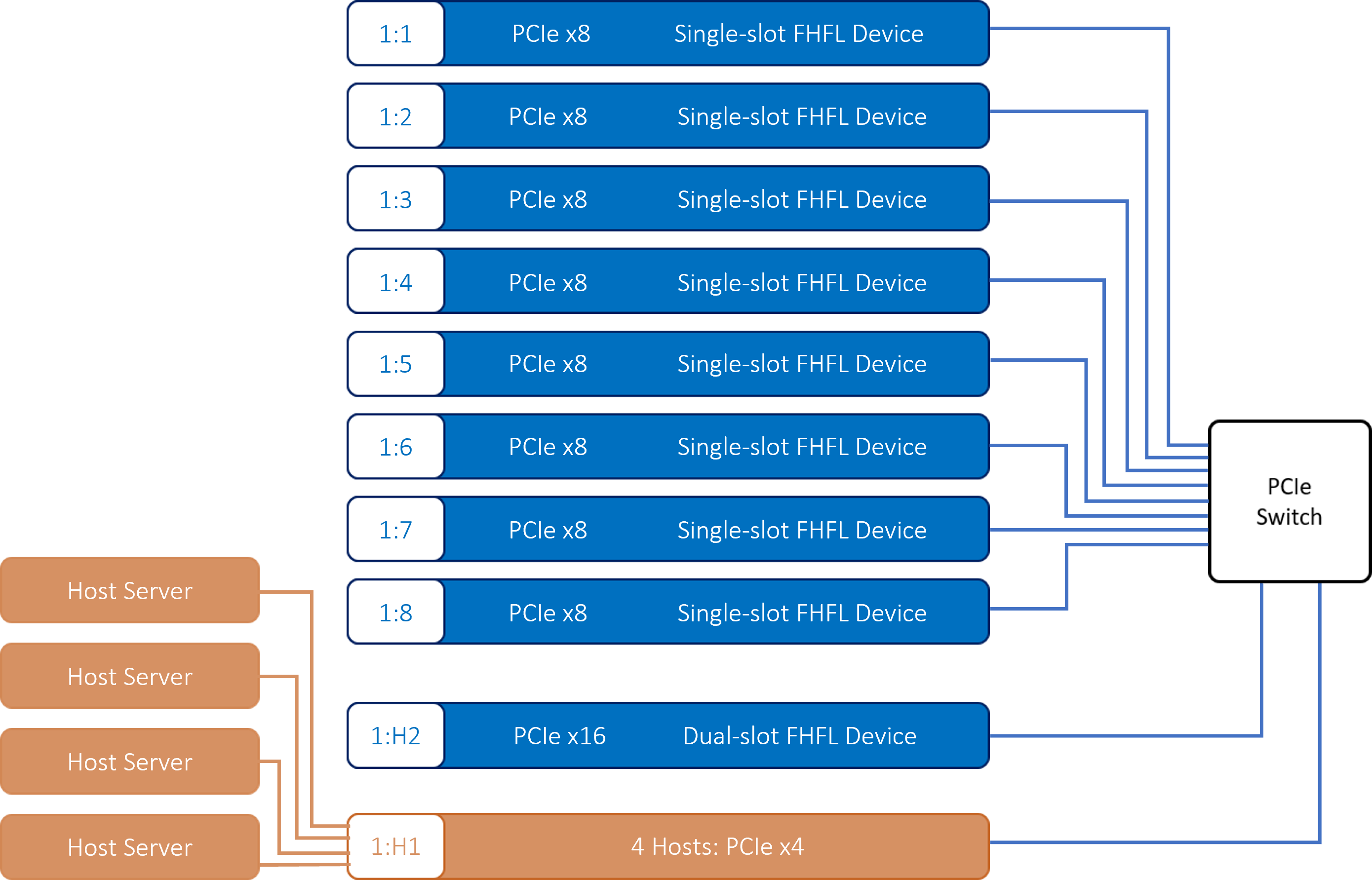

The host port is configured into four x4 host ports. The hosts could access up to 9 devices.

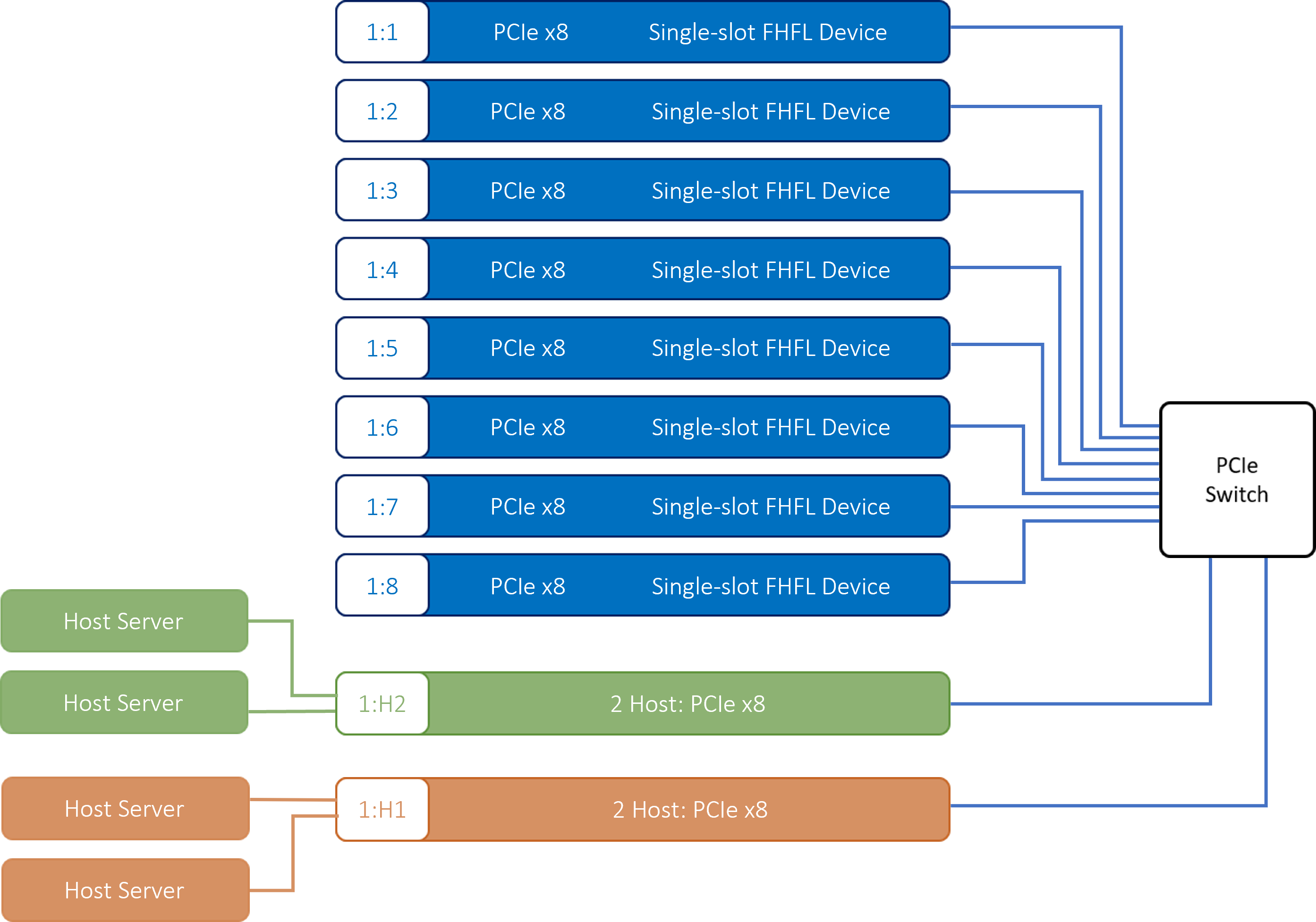

The extra double-width slot and host slot are configured into x8 host ports. The hosts could access 8 devices.

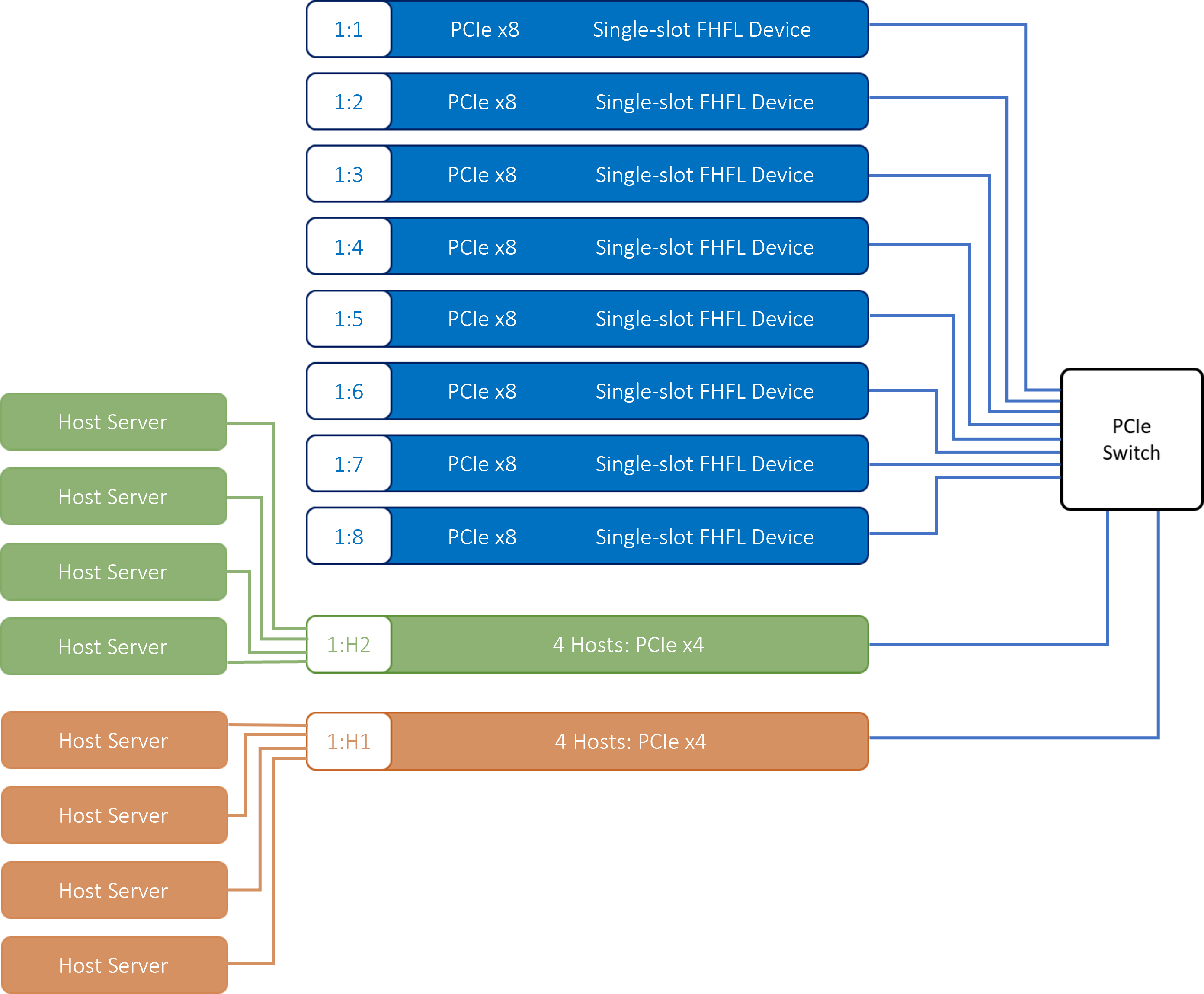

The extra double-width slot and host slot are configured into x4 host ports. The hosts could access 8 devices.
