Falcon 4010 comes with two PCIe switches inside. Each switch is equipped with six PCIe 4.0 x16 slots - four double-width slots are designed for GPUs while two low-profile slots could be configured as either device ports or host ports
There are two configuration modes of Falcon 4010 including standard mode and advanced mode. Configuration is unchangeable under standard mode, but changeable with two low-profile slots under advanced mode as each low-profile slot could be configured as one x16 port, two x8 ports, four x4 ports or combined.
The following are some common configurations of Falcon 4010 to start with.
Two PCIe switches of Falcon 4010 are connected. One host could use all PCIe devices in the chassis with up to eight GPUs and one PCIe device (low-profile).
Each host could access up to four GPUs and one PCIe device (under the same PCIe switch).
Each host port is configured into two x8 host ports. Each host can access 4 GPUs and one PCIe device.(under the same PCIe switch)
The low-profile slots are all configured into x16 host port. Each host could access four GPUs.(under the same PCIe switch)
Each host port are configured into four x4 host ports. Each host could access four GPUs and one PCIe device. (under the same PCIe switch)

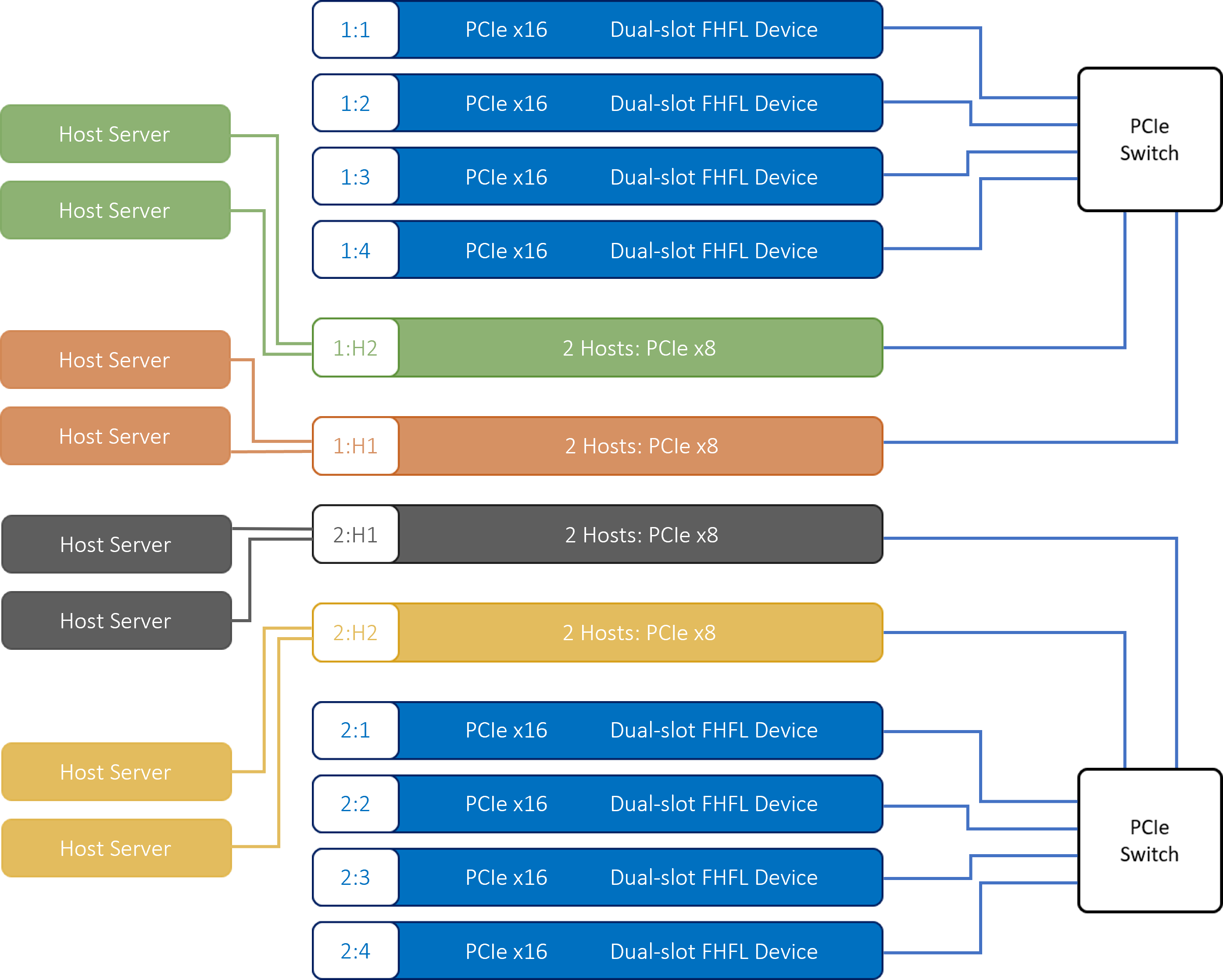

The low-profile slots are all configured into host ports. Each host port is configured into two x8 host ports. And each host could access four GPUs.

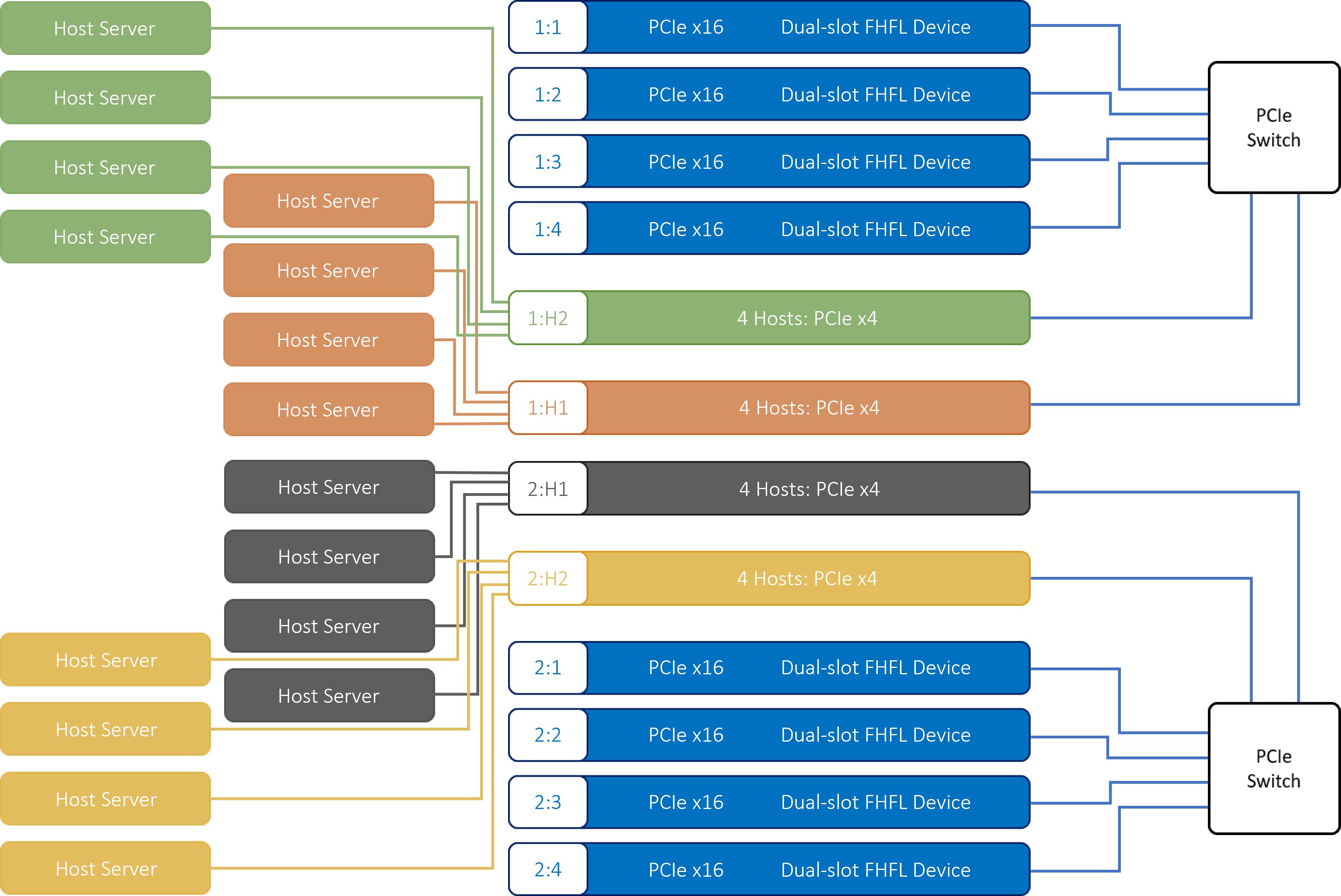

The low-profile slots are all configured into host port. Each host port is configured into four x4 host ports. And each host could access four GPUs.
