Falcon 4005 comes with single PCIe switch inside, equipped with 4 PCIe 4.0 x16 slots - four double-width slots are designed for GPUs. There is an double-width FHFL slot could be configured as either device ports or host ports
There are two configuration modes of Falcon 4005 including standard mode and advanced mode. Configuration is unchangeable under standard mode, but changeable with the extra double width slots under advanced mode as each low-profile slot could be configured as one x16 port, two x8 ports, four x4 ports or combined.
The following are some common configurations of Falcon 4005 to start with.

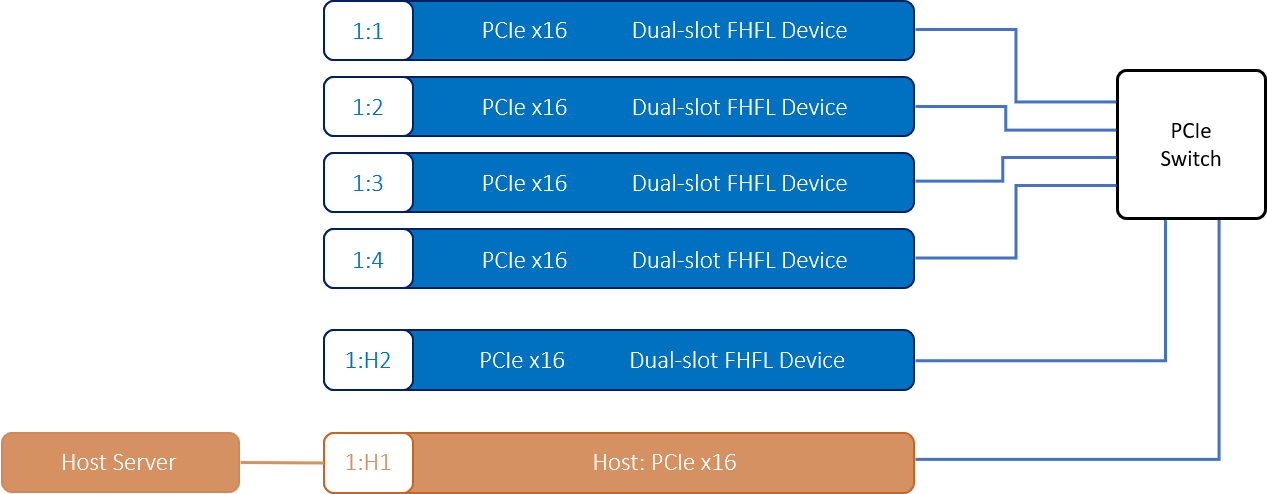

One host could use all PCIe devices in the chassis with up to five GPUs.
The extra double-width slot is configured as a x16 host port. Each host could access four GPUs.

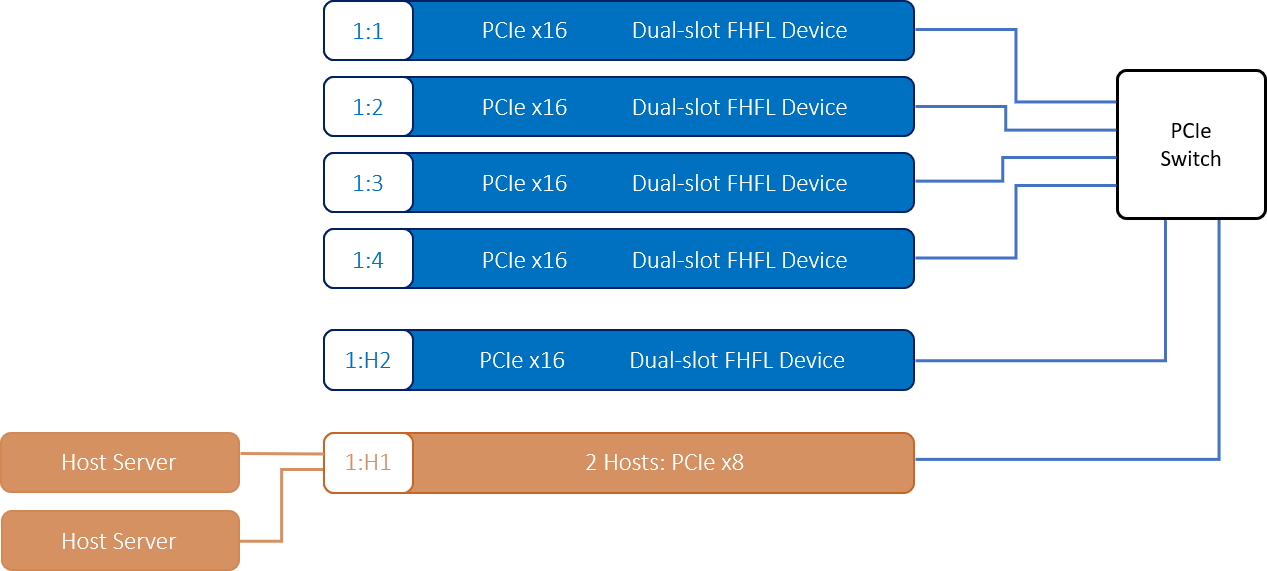

The host port is configured into two x8 host ports. Each x8 host could access four GPUs and one extra PCIe device..

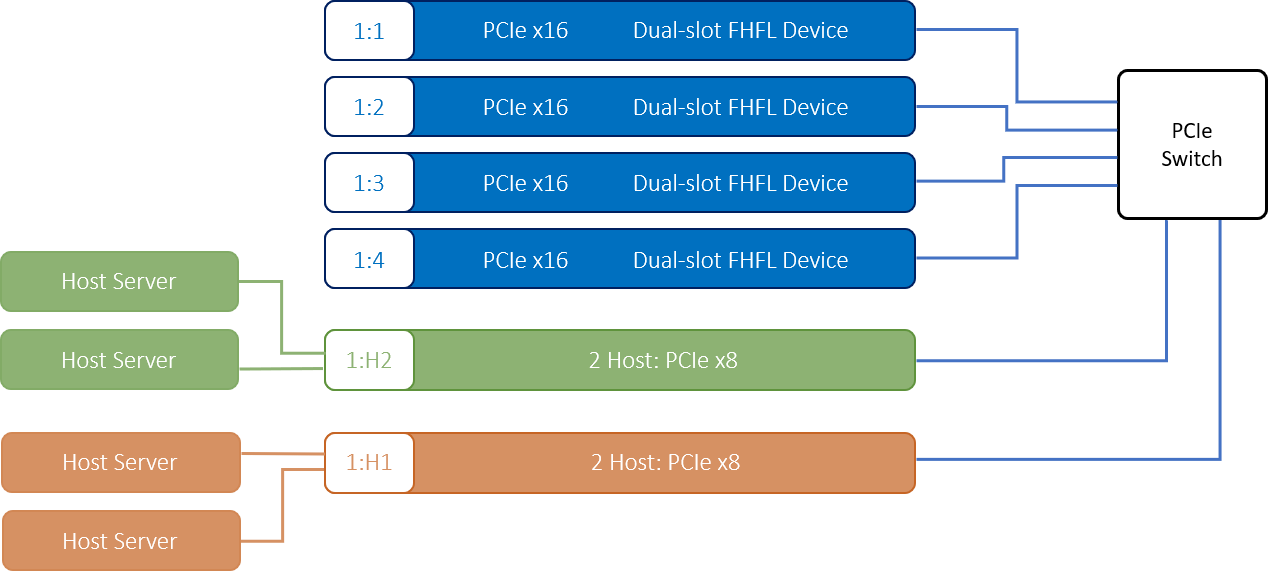

The extra double-width slot and host slot are configured into x8 host ports. Each x8 host could access four GPUs.

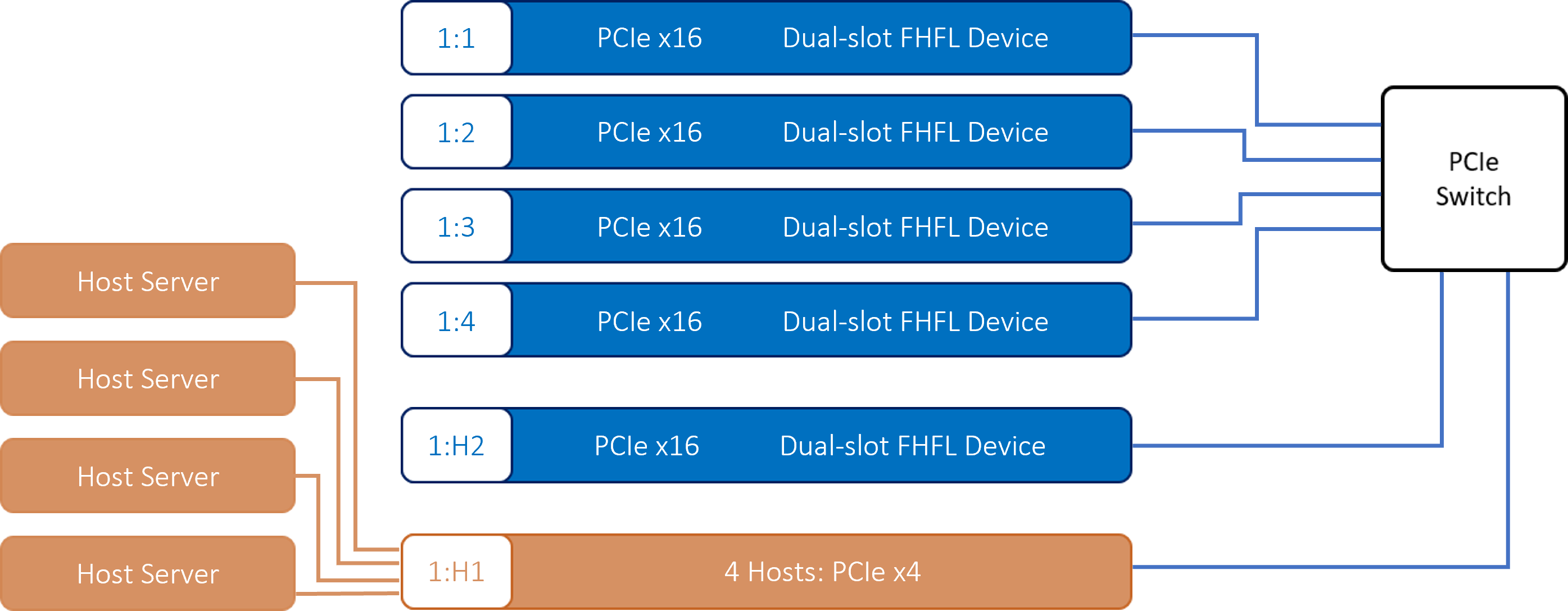

The host port is configured into four x4 host ports. Each x4 host could access four GPUs and one extra PCIe device.

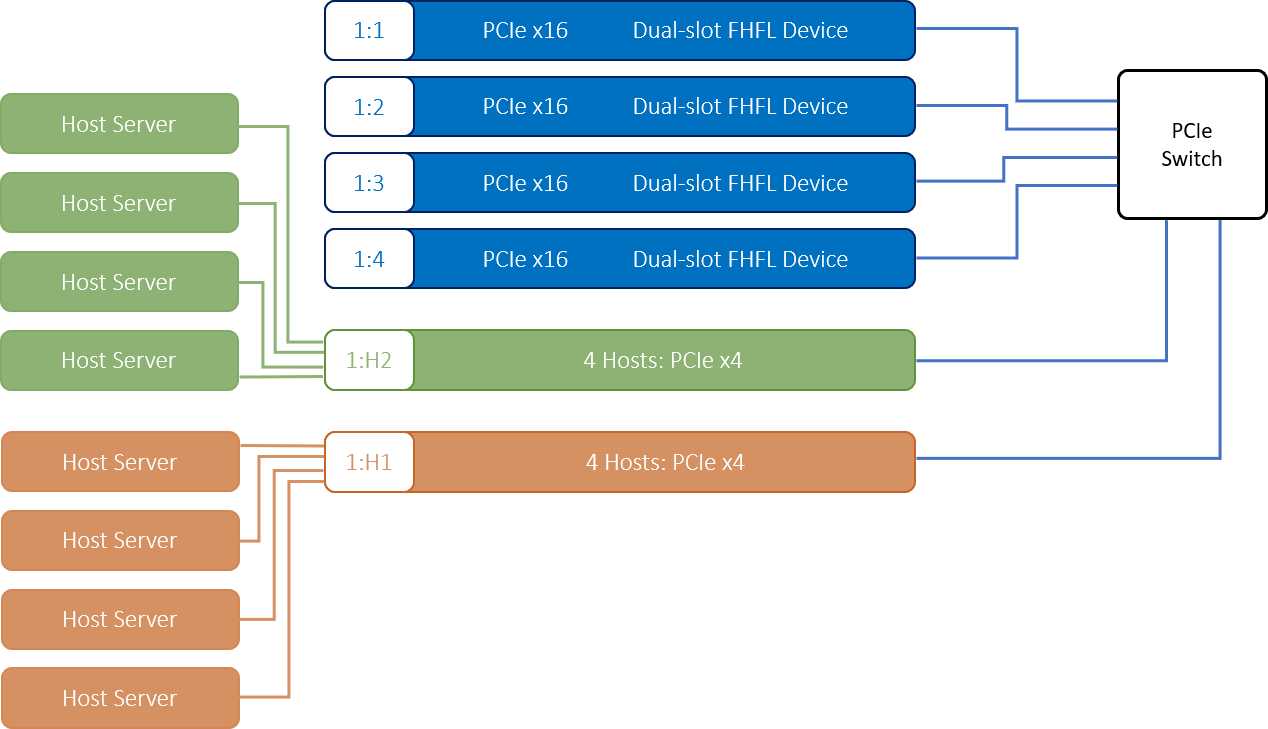

The extra double-width slot and host slot are configured into x4 host ports. Each x4 hosts could access four GPUs.
