There are two configuration modes of Falcon 4205, the standard mode and the advanced mode. The Standard mode supports single host connection, the fifth port (slot) will be a device slot and remain unchangeable. The Advanced mode supports multiple host connections, the fifth port (slot) can be re-configured into host port for the extra host. Also, the GPUs can be re-allocated dynamically among hosts under Advanced mode.

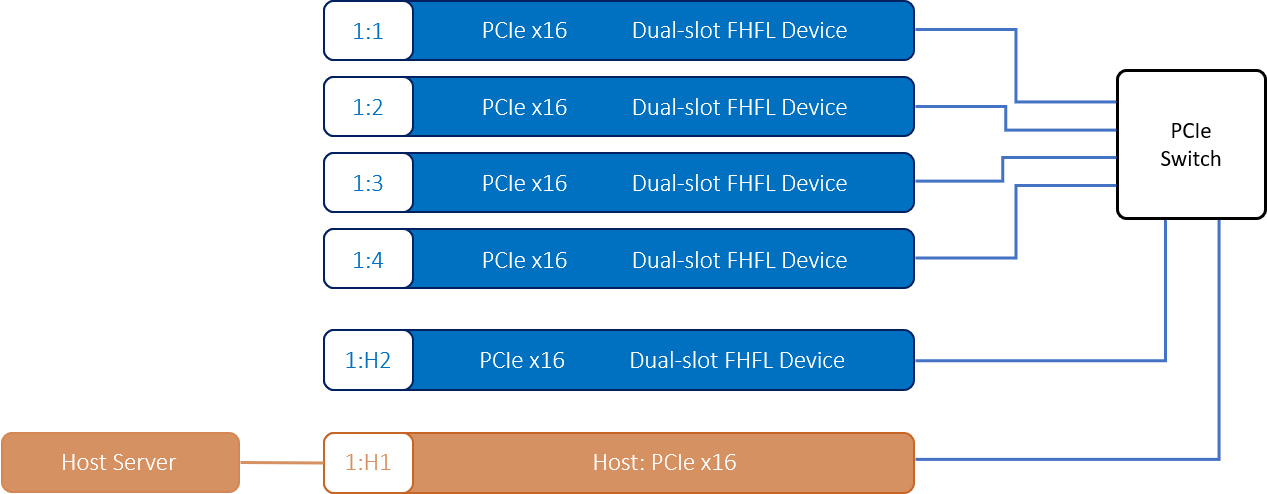

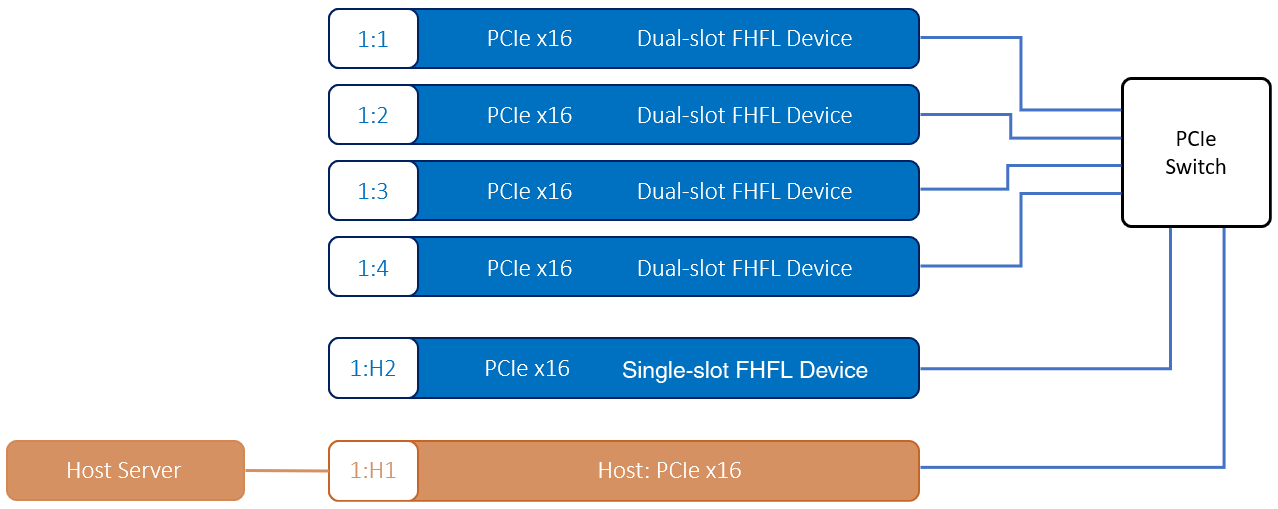

All four GPUs are accessed by a single host.

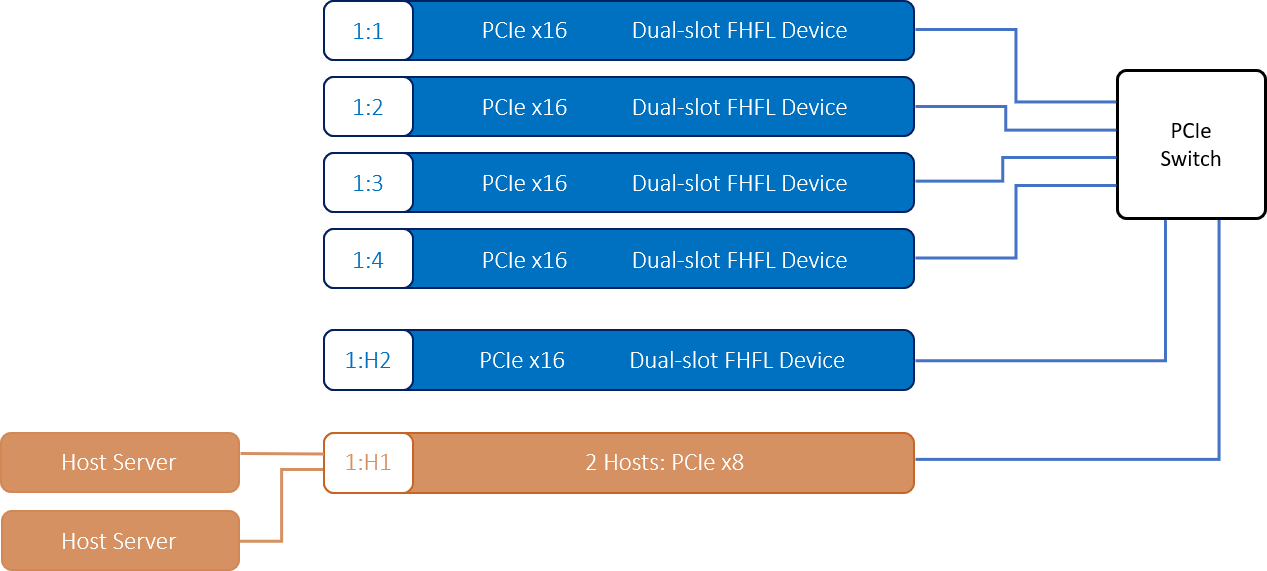

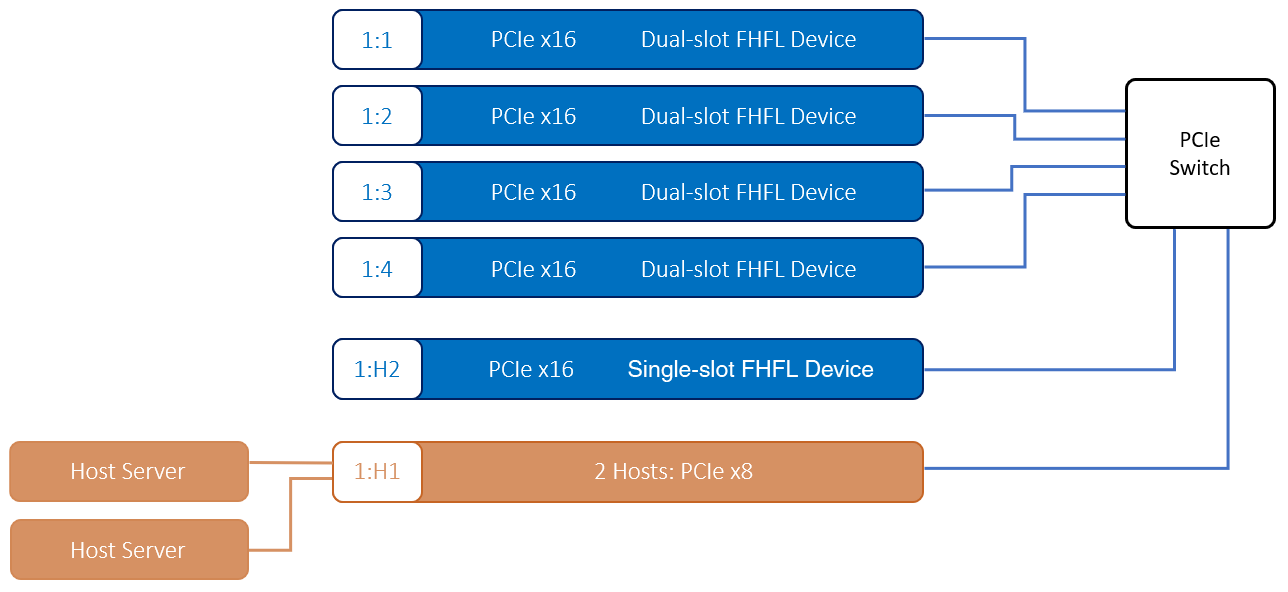

2. Advanced mode with two x8 hosts
The host port is configured into two x8 host ports. The four GPUs can be allocated among the two hosts.

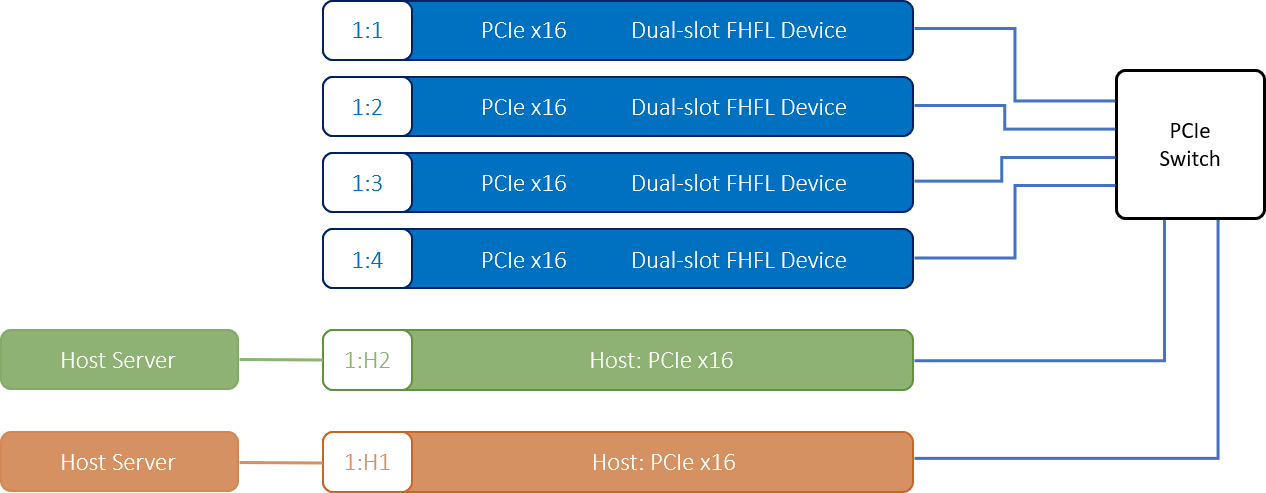

3. Advanced mode with two x16 hosts
The extra double-width slot is configured as a x16 host port. The four GPUs can be allocated among the two hosts.

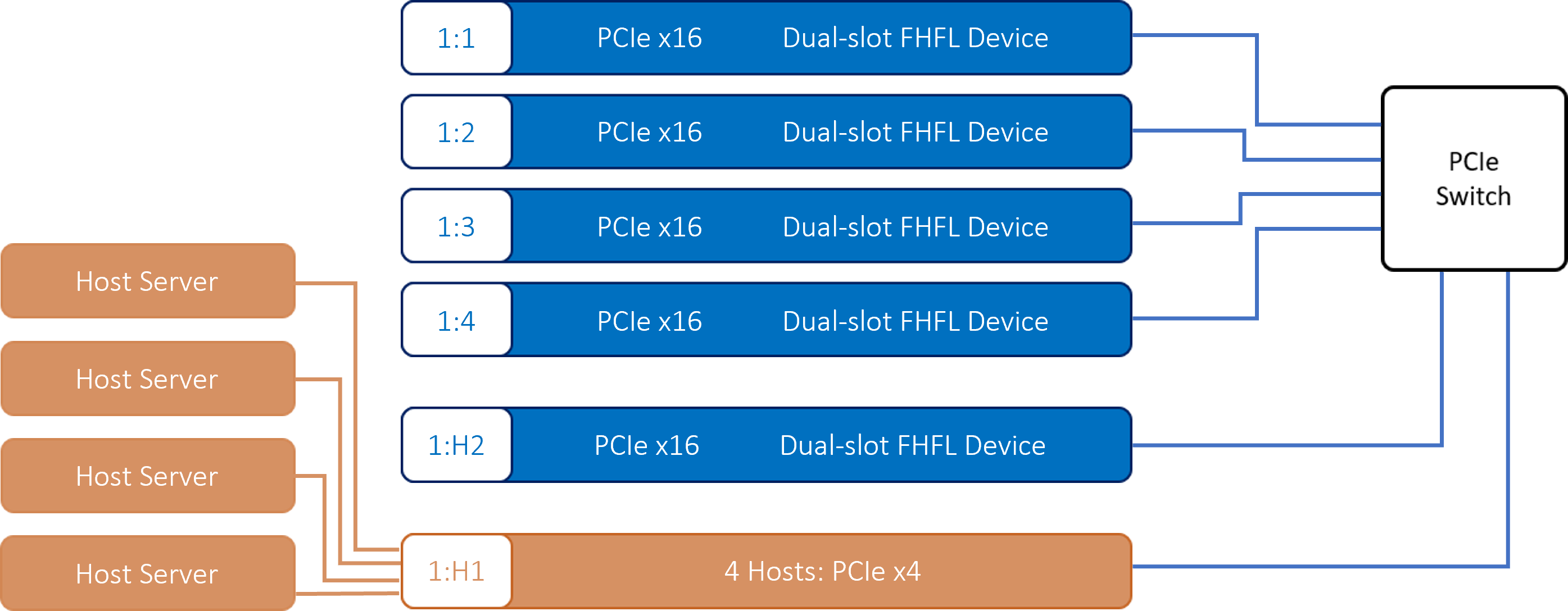

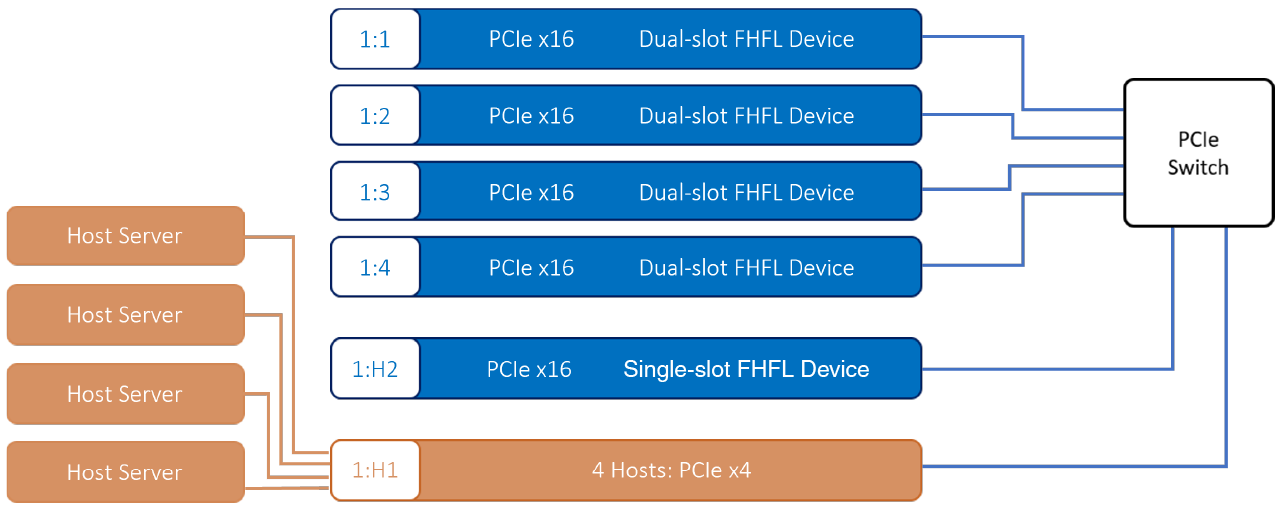

4. Advanced mode four x4 hosts
The host port is configured into four x4 host ports. The four GPUs can be allocated among the four hosts.
5. Advanced mode with four x8 hosts
The extra double-width slot is configured into host port. Each host port is configured into two x8 host ports. The four GPUs can be allocated among the four hosts.

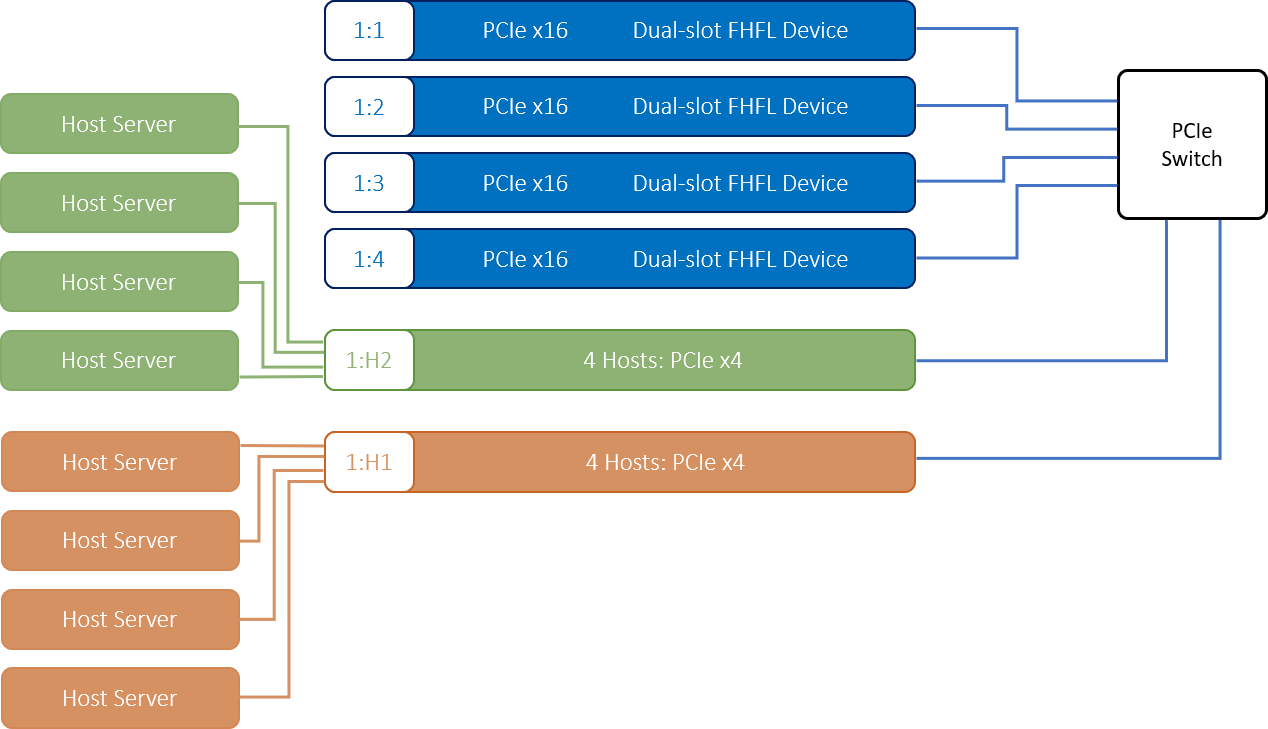

6. Advanced mode with eight x4 hosts
The extra double-width slot is configured into host port. Each host port is configured into four x4 host ports. The four GPUs can be allocated among the eight hosts.
